| MOQ: | 1 set |
| standard packaging: | 纸箱 |
| Delivery period: | 10-15天 |
| payment method: | Western Union, T/T |
| Supply Capacity: | 1000 sets |

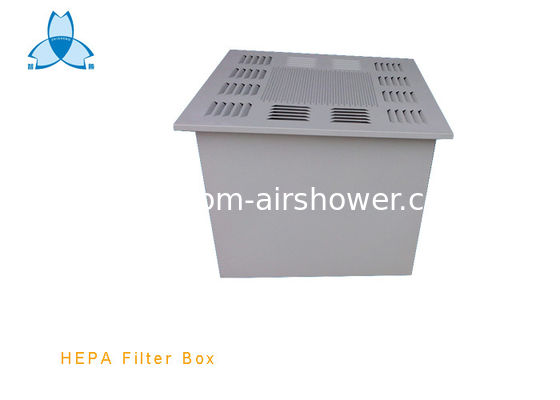

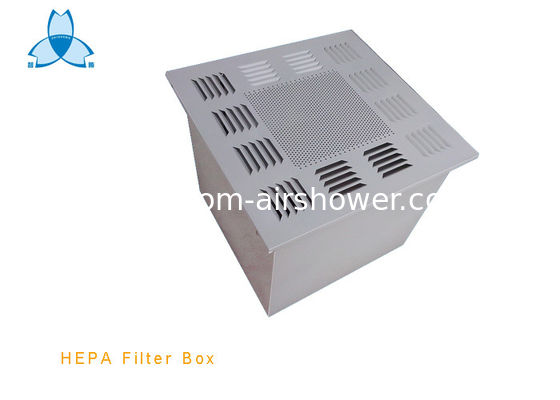

高效送风口 Terminal HEPA filter unit
高效送风口,适用于各种净化级别和多种维护结构的洁净室.其密封性能可靠,结构紧凑,通用性能强,安装方便,维护简单.
材质:箱体冷轧板静电喷涂
Casing material: cold rolled steel with powder coated
可选配件 Optional accessory
1不绣钢送风口/不锈钢散流板
2 保温层
3 圆形进风口/矩形进风口
4 测压管接头
尺寸与规格Standard size and Specification
| Model 型号 | Plenum box Size(KxLxH/h)静压箱尺寸 |
Rated air flow(m2/h) 额定风量 |
HEPA filter dimensions(mm) 高效尺寸 |
Air inlet size (AxB) mm 进风管尺寸 |
Duct size mm 开孔尺寸 |
| ZS-GGF-320 | 370x370x220/450 | 400 | 320x320x69 | 250x200 | 380x380 |
| ZS-GGF-484 | 534x534x220/450 | 1000 | 484x484x69 | 320x200 | 540x540 |
| ZS-GGF-610 | 660x660x220/450 | 1000 | 610x610x69 | 320x250 | 670x670 |
| ZS-GGF-630 | 680x680x220/450 | 1500 | 630x630x69 | 320x250 | 690x690 |
| ZS-GGF-915 | 965x660x220/450 | 1500 | 915x610x69 | 550x250 | 975x670 |
| ZS-GGF-1220 | 1270x660x220/450 | 2000 | 1220x610x69 | 630x250 | 1280x670 |
|
|
