| MOQ: | 1 set |
| standard packaging: | 纸箱 |
| Delivery period: | 10-15天 |
| payment method: | Western Union, T/T |
| Supply Capacity: | 1000 sets |

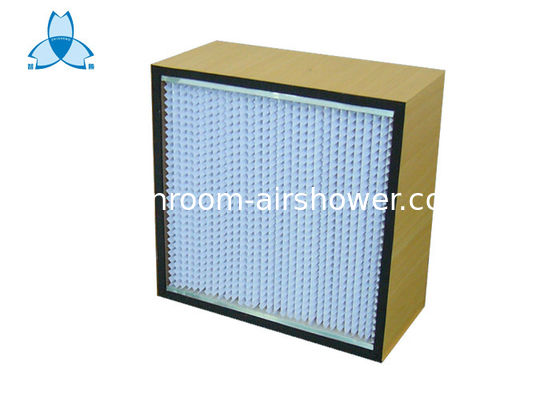

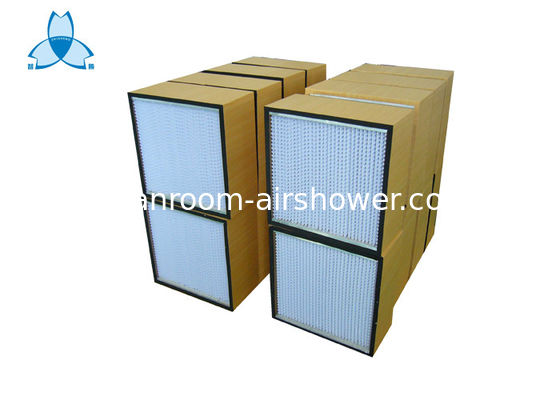

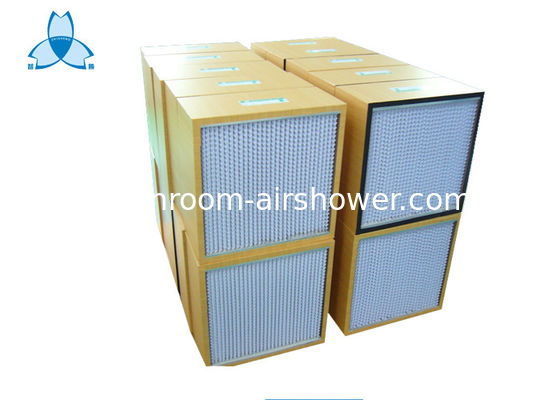

木框有隔板高效过滤器 Deep pleat HEPA filter
用途:广泛用于电子,半导体,精密机械,制药,医院,食品等行业中对洁净度要求 较高的民用或工业洁净场所的末端过程.
外框:铝合金框/铝折框/木框/镀锌框/不锈钢框
Frame: Extruded aluminum/aluminum/wooden/galvanized/stainless steel
滤料:国产超细玻璃纤维滤纸/HV超细玻璃纤维滤纸
Media: fiberglass/HV fiberglass
密封胶:聚氨酯
镀锌框/木框高效有隔板过滤器 Sealant: polyurethane
分隔物: 纸隔板/铝隔板
Separator: paper / aluminum foil
密封条:EVA
Gasket: EVA
工作温度:≤80℃
work temperature: ≤80℃
效率:95% -99.999% (MPPS)
Efficiency: 95% -99.999% (MPPS)
尺寸与规格Size and specification
| Model 型号 | Dimensions(mm) 尺寸 | Rated air flow (m3/h) 额定风量 | Initial resistance (Pa)初阻力 | Efficiency 效率 (MPPS) | Class (EN1822) 净化级别 |
| ZS-GB320 | 320x320x220 | 400 | ≤220(fiberglass) ≤120(HV fiberglass) ≤120(PP) | 95% -99.995% | F9-H14 |
| ZS-GB350 | 350x350x220 | 500 | |||
| ZS-GB484 | 484x484x220 | 1000 | |||
| ZS-GB630 | 630x630x220 | 1500 | |||
| ZS-GB610 | 610x610x150 | 1000 | |||
| ZS-GB915 | 915x610x150 | 1500 | |||
| ZS-GB1220 | 1220x610x150 | 2000 | |||
| ZS-GB295 | 295x595x292 | 1400 | |||
| ZS-GB595 | 595x595x292 | 2800 | |||
| ZS-GB305 | 305x610x292 | 1500 | |||
| ZS-GB610-2 | 610x610x292 | 3000 |
注:1. 滤纸可选用美国HV滤纸,初阻力为120pa
2. 除以上尺寸,还可根据客人要求尺寸定做
|
|
