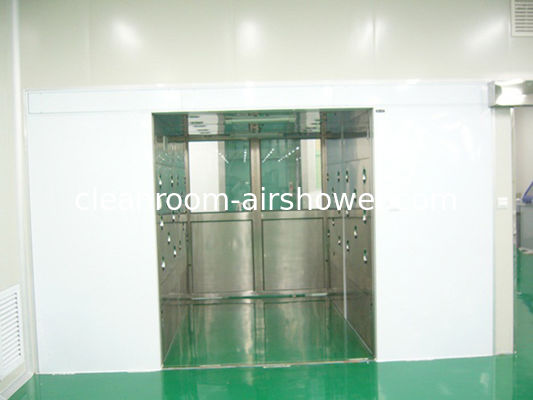

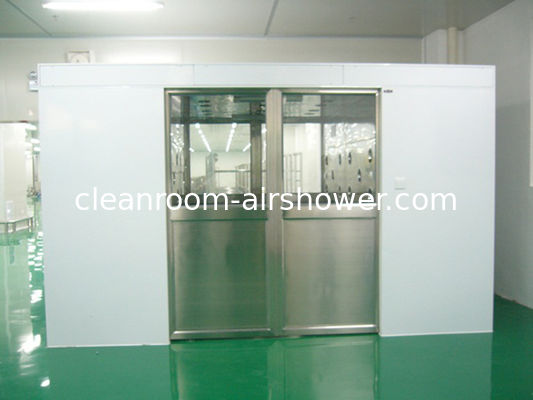

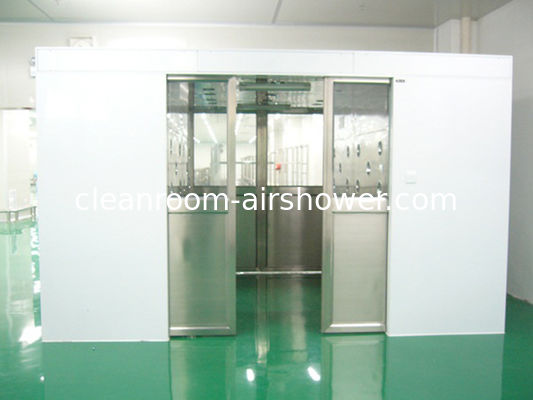

暗藏式多人三吹双开自动门风淋室通道/货淋室通道

暗藏式多人三吹双开自动门风淋室通道/货淋室通道

    • 暗藏式多人三吹双开自动门风淋室通道/货淋室通道
    • 暗藏式多人三吹双开自动门风淋室通道/货淋室通道
    • 暗藏式多人三吹双开自动门风淋室通道/货淋室通道
  • 暗藏式多人三吹双开自动门风淋室通道/货淋室通道

    产品详情:

    原产地: 广东东莞
    品牌名称: 智胜
    认证: CE, Rhos, ISO9001
    产品型号: AS-3000T-4000

    付款和运送条款:

    最小订货量: 1 台
    包装: 卡板
    交货周期: 10-15天
    付款条款: T/T, Western Union
    供货能力: 200 Set/Sets per Month
    立即联系
    详细产品介绍
    材质: 不锈钢304 风速: 22-25m/s
    门: 单开自动门 高效过滤器: 99.99%

    暗藏式多人三吹双开自动门风淋室通道/货淋室通道



    CE认证/Rohs 认证/ISO9001认证



    风淋室Air Shower



    描述: 风淋室是人/货进入洁净室所必须的通道,保持洁净室与外界的隔离,进入洁净区的人和货物经高效过滤器后的洁净空气吹淋后,能有效而迅速清除尘埃粒子,我们可以根据洁净区人数多少组装成各种长度的风淋室或者风淋通道.

    Description: Air shower is a kind of partial clean equipment which is installed at the place between the clean and non-clean room. It’s used for people and goods to shower before entering the clean area. After using it, the dust could effectively be reduced to enter the clean area and maintain the normal working status.We can assembly air showers or passages in different lengths as per the number of people that may enter into the clean room.
    吹淋方式:单侧吹,双侧吹和三侧吹

    Blowing type: single-side blowing, double-side blowing, three-side blowing.



    特点Features:



    1. IC智能线路板控制,电子互锁,光电感应自动吹淋.The control system by IC intelligent control panel, blowing automatically by photoelectric sensor, the two doors are electric interlocked.



    2. 风淋时间0-99秒可调,出厂初始设置为15秒.Air shower time from 0 to 99 seconds which can be adjustable



    3. 采用初,高效两级过滤器系统.Adopt Primary filter and HEPA filter



    4. 风速:22-25m/s Spurt speed: 22-25m/s



    5. 货淋室无底板 Cargo air shower which is without base.



    Optional accessory: 可选配件



    1. 自动感应平移门/快速卷帘门Automatic sliding door/high speed shutter door

    2. 超高效过滤器 ULPA filter

    3. 箱体材质:冷轧板喷涂/不锈钢201/不绣钢304

    Material for cabinet: cold-rolled steel plate with powder coated / SUS#201 / SUS#304

    4. 杀菌灯/急停开关UV Sterilizer lamp /E-stop switch

    5. 离子喷嘴Ion Nozzle



    尺寸和参数Size and specification



    Model型号 Air shower 风淋室 Cargo Air shower 货淋室
    AS-1200D-1 AS-1400D-1 AS-1400D-1.5 AS-1400D-2 CAS-1700T-2 (2 Modules) CAS-1700T-4 (4 Modules)
    Outer size 外尺寸WxDxH (MM) 1200x1000x 2050 1400x1000x 2050 1400x1500x 2050 1400x2000x 2050 1800x2000x2050 1800x4000x 2050
    Inner size 内尺寸 WxDxH (MM) 800x900x 1920 800x900x 1920 800x1400x 1920 800x1900x 1920 1200x1900x 1920 1200x3900x 1920
    Doors门 Swing door/sliding door/shutter door 手开门/自动平移门/高速卷帘门 Door frame: SS/ALU 门框材质:不锈钢/铝合金
    Suitable person适合人数 1 1 1-2 2-3 Cart 推车
    Nozzles 喷嘴 12(two side) 12(two sides) 18(two sides) 24(two sides) 32(3- side) 64(3- side)
    Fan 风机 #4250x1 set #4195 x 2 sets #4195x2sets #4250x2sets #4195x4sets #4195x8sets
    power(W)功率 1000W 850W 850W 2000W 1700W 3400W
    HEPA filter 高效 610x610x69 1pcs 610x610x69 2pcs 610x610x69 2pcs 915x610x69 2 pcs 610x610x69 4pcs 610x610x69 8pcs

    Nozzle

    喷嘴

    ф 25 or 32mm
    Voltage 电压 380V/50Hz/3Ph; 220V/50Hz/1Ph
    Control system 控制系统 IC intelligent control panel, blowing automatically by photoelectric sensor, the two door are electric interlocked. IC 智能线路板控制,电子互锁,光电感应自动吹淋



    Customized size and specification can be acceptable 可根据客人要求尺寸定做



    暗藏式多人三吹双开自动门风淋室通道/货淋室通道 0暗藏式多人三吹双开自动门风淋室通道/货淋室通道 1暗藏式多人三吹双开自动门风淋室通道/货淋室通道 2
