ZS-CL-1340噪声低、运行可靠的垂流洁净工作台

ZS-CL-1340噪声低、运行可靠的垂流洁净工作台

MOQ: 1台
standard packaging: 出口包装
Delivery period: 7-20 天
payment method: 30% 定金,尾款70%发货前付清, L/C, T/T, Western Union
Supply Capacity: 每月200台
Detail Information
原产地
广东东莞
品牌名称
智胜
认证
ISO 9001/CE/ROHS
产品型号
ZS-CL-1040
材料:
冷板喷塑
外型尺寸:
1040*710*1850mm
工作区域尺寸:
960*615*700mm
适用人数:
1人
高效过滤器尺寸:
915*610*69
高效过滤器数量:
1 Pcs
最小订货量:
1台
包装:
出口包装
交货周期:
7-20 天
付款条款:
30% 定金,尾款70%发货前付清, L/C, T/T, Western Union
供货能力:
每月200台
Product Description



ZS-CL-1340噪声低,运行可靠的垂流洁净工作台



 设计特点:


●洁净工作台作为一种局部(垂直或水平层流)洁净装置,可使工作区达到100级的净化要求,本系列产品有两种机构方式.一种为整体型,一种为工作台与自净器分离型,更可做成客户要求的各种形式.


Features:


●Clean bench, as a partial (vertical or horizontal ones) clean equipment, can make the working area meet the requirement of 100% purification. These series include two structures: the first one is one-piece type, the other one is the one that bench and self-purified equipments are separated, various sizes and customized design are available.



可选配件:



1,高效过滤器/超高效过滤器

2,防静电桌面/不锈钢面板

3,普通钢管喷塑架/不锈钢管架

4,进口风机/国产风机

5,压差表

6,离子风棒



产品规格及技术参考:



型号Model ZS-CI-1040 ZS-CI-1340 ZS-CI-1640 ZS-CI-1950

外型尺寸

External dimensions (W x D x H)mm

1040x710x1850 1340x710x1850 1640x710x1850 1950x710x1850

工作区尺寸

Size for working area (W x D x H)mm

960 x 615 x 800 1260 x 615 x 800 1560 x 615 x 800 1870 x615 x800

适用人数

Suitable people

1人/ one person 1-2 人 /one person or two people 2-3人 / two person or three people 3人/ three people
高效过滤器尺寸Specification of HEPA filter (mm) 915x610x69 1220x610x69 915x610x69 610x610x69 915x610x69
高效过滤器数量Quantity of HEPA filter (pcs) 1 1 1/1 2
噪声 / Noise ≤53dB ≤53dB ≤54dB ≤54dB
风机功率 / Blow power 125W 125W 160W 125W x 2
照明灯规格及数量Fluorescent lamp 20W 30W 20W x 2 30W x 2

工作台面材质

Material of Bench top

SUS304
生产/检测标准Produce/Inspection standard US Federal standard 209E(美国联邦标准209E)
风速 / Air velocity 0.45-0.75m/s
压力 / Voltage AC 220V/50Hz/1PH or 110V/60Hz/1Ph

净化级别

Cleanliness Class

100 Class (US Federal standard 209E) 100级(美国联邦标准209E /US)
高效过滤器效率Efficiency 99.99% @0.3μm






参考图片:

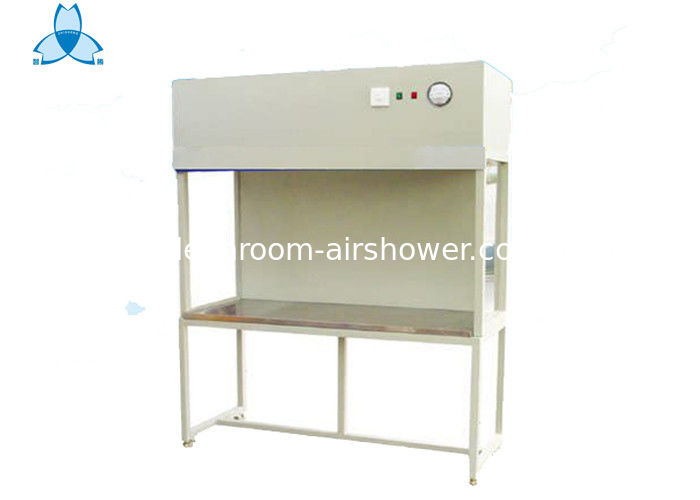

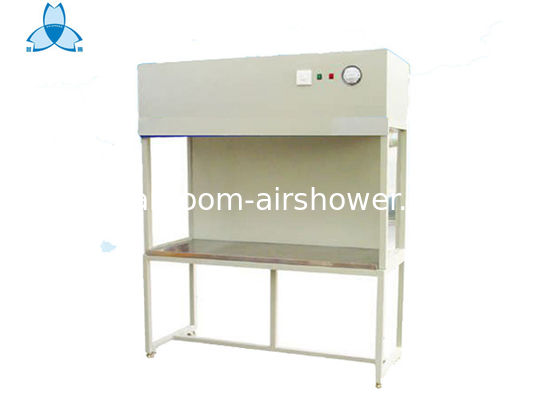

ZS-CL-1340噪声低、运行可靠的垂流洁净工作台 0







工作台包装:



1. 简易包装: 珍珠棉+拉伸膜+泡沫护角等



2. 木箱



生产交期:



确认订单后7-20天内,根据数量和车间的生产排期.





保证期:



因为产品质量的原因,一些配件或者电器配件的有效保证期1年免费保修,但人为因素破外除外.



1年之后,如果产品出现质量问题,也可以提供维修服务,根据更换的配件和维修的难易度收取相应的费用.
